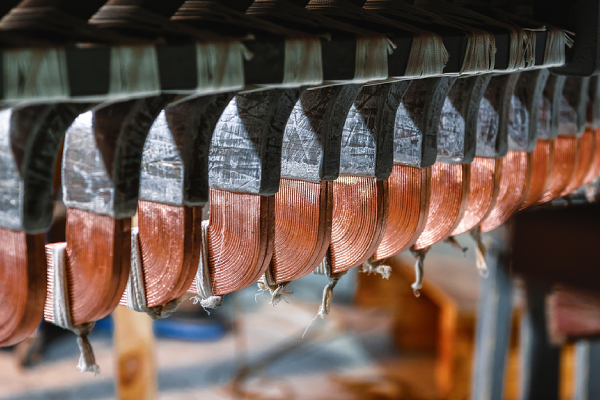

Eccentricity—defined as the offset between an element’s axis of rotation and its axis of symmetry—is a phenomenon that can occur in various mechanical components. In electric motors, eccentricity specifically refers to the misalignment between the centres of the rotor and the stator. Even slight deviations can lead to significant issues, including reduced efficiency, increased vibration, and ultimately, motor failure if not addressed, necessitating untimely repairs or motor rewinding in Singapore.
Development of Eccentricity Faults
Eccentricity faults do not occur overnight; they are the result of various factors that can compromise the delicate balance within an electric motor. One primary source is manufacturing defects. Even with rigorous quality control, small inaccuracies during the production of the rotor or stator can lead to slight misalignments. Over time, these imperfections can exacerbate and manifest as significant eccentricity issues.
Another common contributor is thermal stress. When a motor operates under high loads or in less-than-ideal thermal conditions, the rotor may undergo deformation due to overheating. This deformation further increases the likelihood of misalignment. Additionally, wear and tear from prolonged use can gradually shift the rotor away from the stator’s centre, a process often compounded by factors such as improper installation or maintenance practices.
Other contributors include mechanical factors like shaft misalignment and imbalanced forces within the motor. Uneven magnetic fields, which are often a byproduct of these misalignments, can further distort the rotor’s path. Bearing wear or outright failure is also a notable factor, as degraded bearings can no longer support the rotor’s intended trajectory, leading to progressive eccentricity. If the bearings get compromised, replacing them through services like electric motor overhauling will be necessary.
Types of Eccentricity
Understanding the nature of eccentricity is critical for accurate diagnosis and effective remediation. In electric motors, eccentricity typically manifests in two primary forms: static and dynamic.
- Static Eccentricity:
Static eccentricity occurs when the rotor is displaced by a fixed, unchanging amount relative to the centre of the stator. This type of fault is often rooted in errors during the assembly process or from inherent imbalances such as uneven air gaps between the rotor and stator. The fixed nature of static eccentricity means that while the misalignment is constant, it can still cause persistent issues such as uneven wear and localised heating. - Dynamic Eccentricity:
Unlike its static counterpart, dynamic eccentricity is characterised by a variable offset that changes as the rotor spins. This type of eccentricity is typically associated with operational issues such as bearing failure or fluctuating forces acting on the rotor. As the rotor rotates, the degree of misalignment may vary, leading to a more complex pattern of vibrations and magnetic disturbances. - Mixed Eccentricity:
In some cases, motors may experience a combination of both static and dynamic eccentricity. This mixed form can be particularly challenging to diagnose, as the rotor’s misalignment may be partly constant and partly variable, necessitating a multi-faceted diagnostic approach.
Techniques for Diagnosing Eccentricity
A range of diagnostic methods is available to detect and quantify eccentricity faults:
1. Magnetic Flux Density Analysis
Under ideal conditions, a perfectly centred rotor produces a uniform, symmetrical magnetic field. Eccentricity distorts this field, leading to periodic variations in magnetic flux density as the rotor turns. By placing sensors on the stator, technicians can analyse these variations to determine both the severity of the fault and its specific location. The periodic distortions not only signal the presence of eccentricity but can also provide insights into its severity and precise location. This method is particularly valuable as it allows for a non-invasive assessment of the motor’s internal conditions.
2. Vibration Analysis
Eccentricity introduces distinct vibration patterns in the motor. Using accelerometers or other vibration sensors, the frequency spectrum of these vibrations can be examined to identify the fault’s impact on the motor’s operation. Vibration analysis provides both qualitative and quantitative data, helping technicians determine whether the fault is static, dynamic, or a combination of both.
3. Simulation Techniques
Advanced simulation techniques offer a predictive approach to identifying eccentricity faults, allowing organisations to model their motor’s behaviour under various scenarios. These simulations can be broken down into several sub-categories:
- Thermal Simulation: By modeling heat transfer within the motor, thermal simulations can predict temperature changes and identify hot spots caused by increased losses in an eccentric rotor.
- Finite Element Analysis: Finite element analysis models the motor’s magnetic fields under various conditions, revealing how eccentricity influences performance.
- Coupled Simulation: This comprehensive approach integrates magnetic, electrical, and thermal phenomena to predict the multifaceted effects of eccentricity, offering a robust framework for proactive maintenance.
Conclusion
Effectively diagnosing and predicting eccentricity faults is essential for ensuring optimal motor performance and longevity. This requires understanding the origins and types of eccentricity, employing a combination of diagnostics techniques, and implementing targeted maintenance strategies that mitigate risks and enhance motor reliability. Such a proactive approach not only minimises downtime but also extends the operational lifespan of electric motors in demanding industrial applications.
